Automatic And High Quality Bread Crumb Process Line

PDF

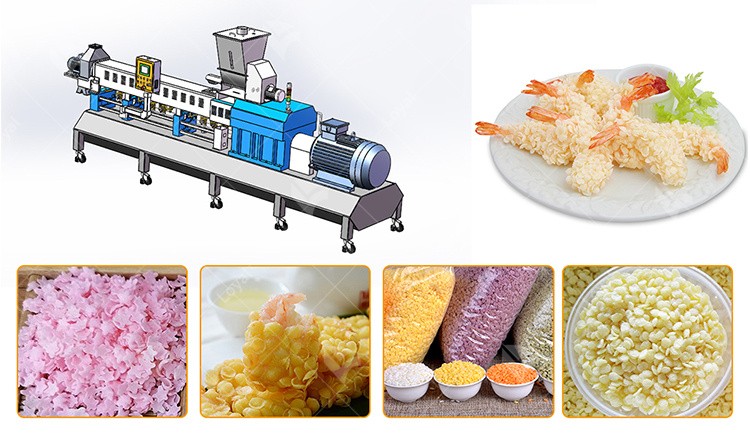

1.What Is Automatic And High Quality Bread Crumb Process Line

Bread crumb production line is commonly used for the products that need fried, crisp outside and soft inside. Replacing the traditional production technology, bread crumb production line is effective with less waste materials . Through mixing, cooking, crushing and screening , this production line can make various shapes of bread crumbs.

Name

Loyal bread crumbs production line

Raw Material

Wheat flour,rice powder, corn powder, soya meal and other grains' powder

Energy

Electricity gas fuel

Machine Material

Stainless steel 316 or according to customer's request

Feature

Easy to operate and maintain,Perfect after-sales service

2.Automatic And High Quality Bread Crumb Process Line’s Equipment Parameters

Model

Electric heating Installed power

Gas Installed power

Output

Size

LY65

85kw

45kw

100-150kg/h

33000x1200x2500mm

LY70

110kw

83kw

150-200kg/h

33000x1200x2500mm

LY75

120kw

93kw

180-220kg/h

34000x1400x2800mm

LY80

180kw

120kw

220-260kg/h

54000x2500x3800mm

LY90

320kw

180kw

300-350kg/h

54000x2500x3800mm

3.Automatic And High Quality Bread Crumb Process Line’s Details

Main Accessories

Function

Anti-blocking feeder

Makes sure the even feeding and stable discharge of materials.

Double shaft preconditioner

Enables the materials stay longer in the preconditioner and evenness in pre condtioning, improves the precure degree and increases the capacity.

Gearbox

Processed by internationally advanced process technology, ensuring the machines run in long time without malfunction.

Lubrication and cooling system

Adopts refined filtration forced cooling, creating best working conditions for the bearings.

The feeding system

Adopts double spiral forced feeding, feeding uniformly and widely.

The screw

Segmented combined screw, suitable for a wide range of raw materials. With self-cleaning function.

The rotary cutting device

Adopts a suspended mold (knife) assembly and a linear bearing tool adjusting device to adjust the tool safely, accurately and quickly.

4.Automatic And High Quality Bread Crumb Process Line’s Production Flow

Mixer

Mixing materials such as raw materials, auxiliary materials and water, with moderate speed and uniform mixing

Screw Conveyor

The equipment in the puffing machine feeder configuration induction probe no material automatically add material

Twin Screw Extruder

The machine consists of material supply system, extrusion system, rotary cutting system, heating system, transmission system, control system. Using advanced screw extrusion puffing technology, using high temperature and high pressure to cook and puff the material into shape, a one-time completion. The host adopts frequency conversion speed control to ensure the stability of the production process. Product color, variety, beautiful appearance, natural and realistic, delicate texture, the use of a wide range of raw materials.

Pulling And Cutting Machine

For product cutting, frequency regulation.

Hoister

For conveying puffed food to the next machine.

Multi-Layer Oven

It is used to dry and dehydrate the semi-finished products produced by using a belt drying device and a certain number of heating devices inside the oven, which is heated by electricity. It is the most commonly used drying and dehydration device for puffed products.

Hoister

For conveying puffed food to the next machine.

Crush Machine

For crushing products.

Viberate Sizer

For product multi-layer screens to screen products

5.Automatic And High Quality Bread Crumb Process Line’s Application

Bread crumb is a widely used food additive, mainly used for Western fried steak, fried chicken legs and other deep-fried accessories. The main products of bread crumb production line are  needle crumb, granular crumb and many other products.
